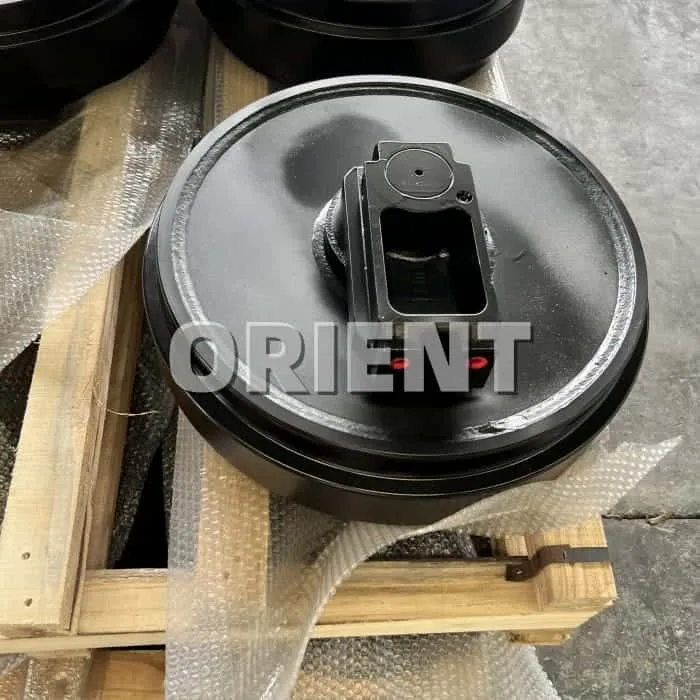

Rotary Drilling Rig Front Idler
Our Rotary Drilling Rig Front Idler

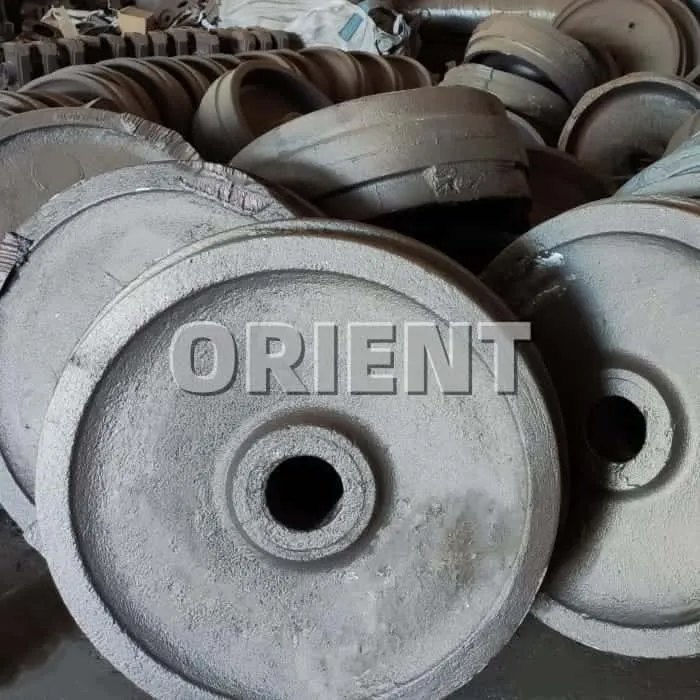

Orient’s rotary drilling rig front idler is manufactured for superior wear resistance either cast, forger or fabricated. ldlers provide superior structural support and resurfacing capabilities. Our idler are special heat treatment with the high surface hardness providing longer wear life.
Our Advanced Inspection Equipments
Microscope Vickers Hardness Tester
The control and measurement system of thvs-1m-vd micro Vickers hardness tester adopts large screen LCD display, and the operation interface adopts menu structure. The hardness scale can be selected on the operation panel, and the hardness value tested can be calculated and displayed automatically. There are eight test forces: 10g, 25g, 50g, 100g, 200g, 300g, 500g and 1000g. Because of its small indentation and small test force, it is mainly used to measure the hardness of small, thin and brittle hardware. And multi-point testing can be performed in a very small range.
Magnification: 100X, 400X
Test force: 10g-1000g
Suitable Undercarriage Parts Model for Rotary Drilling Rig
| BRAND | MODEL |
| Bauer | BG12, BG18, BG20H, BG24, BG25, BG25C, BG25H, BG26, BG28, BG30, BG34, BG36, BG39, BG40, etc. |
| Soilmec | SR30, SR40, SR60, SR65, SR70, SR75, SR80, SR90, SR95, SR100, R208, R312, R618, R620, R622, R622HD, R724, R725, R930, etc. |
| Casagrande | B180, B180HD, B250, B250XP, B300, etc. |
| IMT | AF18, AF180, AF190E, AF190F, AF200, AF215, AF250E, AF250F, AF270, AF280, AF300, AF300E, AF350D, C50, C60, C250, etc. |
| CMV | TH18-65, TH20, TH32, etc. |
| Mait | HR100, HR260, etc. |
| Sany |
SR150, SR155, SR205, SR235, SR265, SR285, SR360, SR365, SR365RC10, SR405, SR415, SR485, etc. |
| XCMG |
XR130, XR150, XR160, XR180, XR220, XR240, XR280, XR360, XR400, XR460, XR550, XR800, XRS1050, etc. |
| ZOOMLION | ZR125C, ZR160C, ZR240C, ZE280C, ZR160L, ZR160A-1, ZR220C, ZR280C-2, ZR300L, ZR360L, ZR380L, ZR400L, ZR450L, ZR500L, ZR650L, ZR140L, ZR550L, ZR220A, etc. |
| SUNWARD | SWDM40, SWDM60, SWDM80, SWDM130, SWDM160, SWDM160H2, SWDM200H, SWDM240, SWDM240H, SWDM240-2, SWDM260, SWDM280, SWDM300, SWDM300H, SWDM300H-2, SWDM360, SWDM360A, SWDM360H3, SWDM420, SWDM420V, SWDM450V, SWDM480, SWDM500, SWDM500V, SWDM550H2, SWDM600, SWDM800, SWDM1000, SWDM1280, etc. |
| LIEBHERR | LB24, LB28, LB36, etc. |
| Atlac Copco | FLEXIROC D55, etc. |
| Sandvik | DX800, etc. |
Recommend Products
-
Rotary Drilling Rig Track Shoe
The track shoes are components of the undercarriage whose function is the transmission of the load to the ground, so that the rotary drilling rig can work steadily on the ground.
-
Rotary Drilling Rig Track Link Assembly
The track chain rail is connected with the track shoe through bolts and nuts to form a track assembly, which bears the pressure of the whole piling machine and is an important walking part, so the quality of the chain rail is very important.
-
Rotary Drilling Rig Track Roller
The track roller is one of the four-wheel belts of the rotary drilling rig chassis. Its main function is to support the weight of the rotary drilling rig, so that the track moves along track rollers.
-
Rotary Drilling Rig Carrier Roller
The carrier roller also calls top roller, top roller is the roller on the top of rotary drilling rig undercarriage. Carrier rollers support and guide the machine on the track and provide track tension support.
-
Rotary Drilling Rig Sprocket
Sprockets are metal rollers that consist of a metal inner ring with bolt holes or a compression hub and a gear ring in one unit. The sprocket is connected with the reducer and the track shoe assembly, so that the power of the engine drives the rotary drilling rig to move.
