Rotary Drilling Rig Track Link Assembly

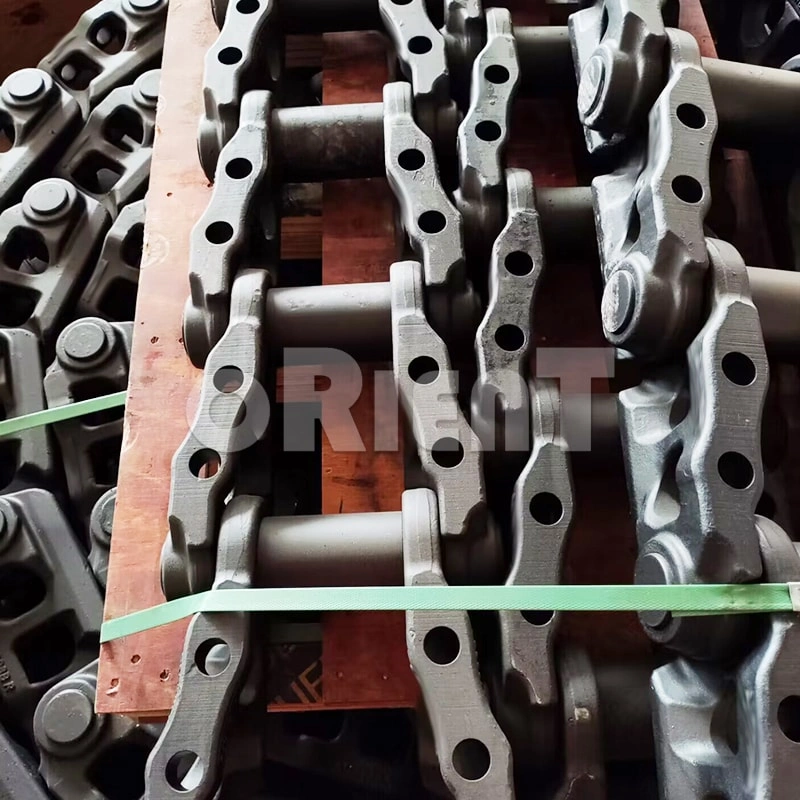

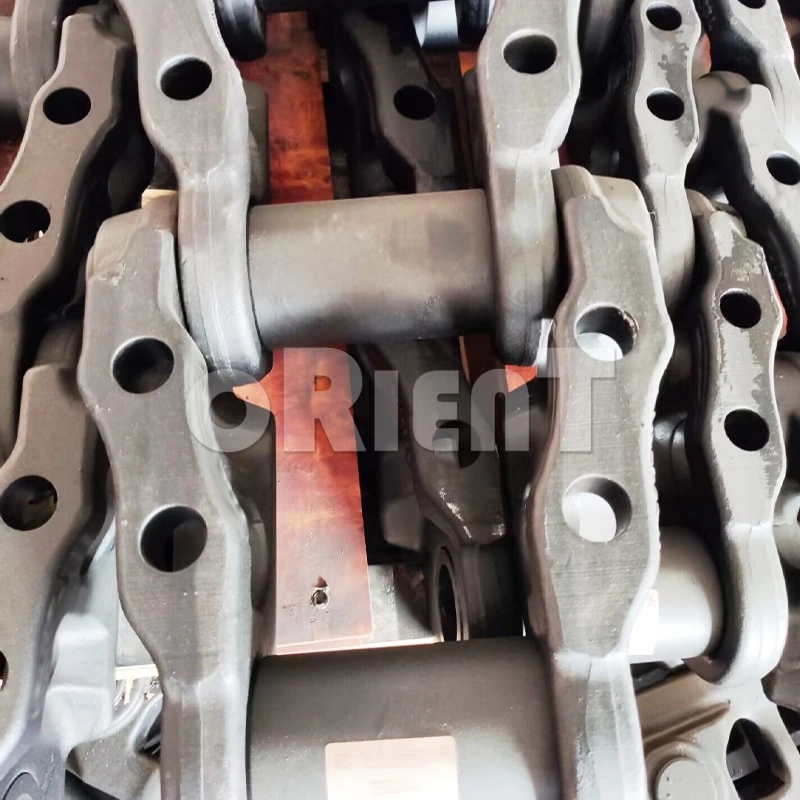

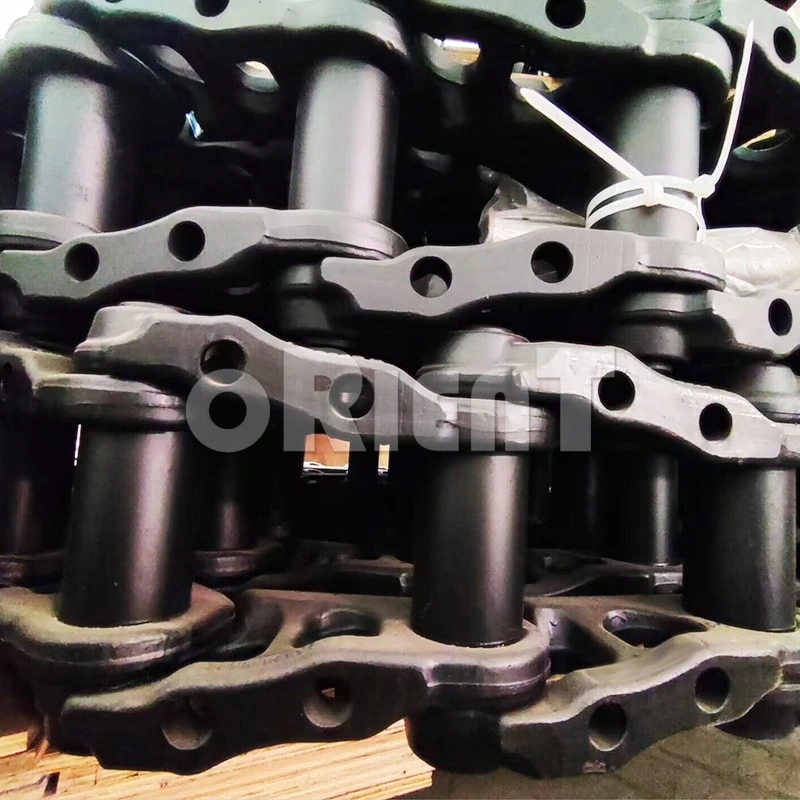

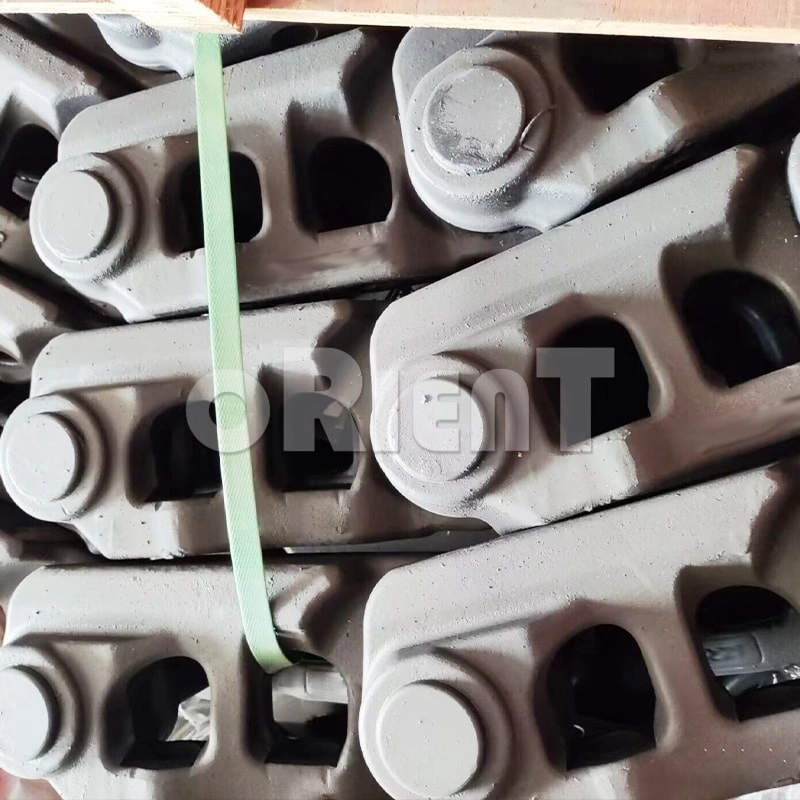

What Is Rotary Drilling Rig Track Chain?
A track chain assembly is a large, oblong-shaped chain link made from high-grade alloy steel. The track chain rail is connected with the track shoe through bolts and nuts to form a track assembly, which bears the pressure of the whole piling machine and is an important walking part, so the quality of the chain rail is very important.
Technical Details of Our Track Chain for Rotary Drilling Rig
1. Material: 35MnBThe price of the same raw material will vary a lot, which is closely related to the origin of raw materials. Our company uses special steel at a very high price, and the product quality is very high.
2. Advanced Processing Machines
- Our company has 2500T and 1600T two hot die forging production line. The size of track chain produced by hot die forging press equipment is stable.
- The mesh belt furnace automatic equipment of mesh belt furnace is adopted. The internal structure of the product tempered by mesh belt furnace is even, the quality of batch production is stable, and the problem of hardness is avoided.
- From material extraction, melting, cooling, quenching, shaping, tempering, forming, and scene testing, Yantai Orient's track link has undergone multiple rounds of grinding and forging.
3. The Quality of Our Track Link is Guaranteed
- High temperature resistance: withstand a high temperature of 800 ℃ for 1 minute without deformation.
- Impact resistance: withstand 2000 pounds of gravity and rapid metal impact for 50 consecutive times without deformation.
- Durable to compression: withstand 10 tons of road roller compaction back and forth for 10 times without deformation.
- Wear resistance: withstand rapid rotation of the steel shaft friction for one minute, with slight surface scratches.
4. Strict Product Quality Control
- Each batch of raw materials is subjected to physical and chemical experiments.
- The heating temperature of each bar is strictly controlled.
- Metallographic analysis is performed for each batch of heat treatment.
- Every track link has been inspected for defects.
- Every track link has a code that can be traced.
Suitable Undercarriage Parts Model for Rotary Drilling Rig
| BRAND | MODEL |
| Bauer | BG12, BG18, BG20H, BG24, BG25, BG25C, BG25H, BG26, BG28, BG30, BG34, BG36, BG39, BG40, etc. |
| Soilmec | SR30, SR40, SR60, SR65, SR70, SR75, SR80, SR90, SR95, SR100, R208, R312, R618, R620, R622, R622HD, R724, R725, R930, etc. |
| Casagrande | B180, B180HD, B250, B250XP, B300, etc. |
| IMT | AF18, AF180, AF190E, AF190F, AF200, AF215, AF250E, AF250F, AF270, AF280, AF300, AF300E, AF350D, C50, C60, C250, etc. |
| CMV | TH18-65, TH20, TH32, etc. |
| Mait | HR100, HR260, etc. |
| Sany |
SR150, SR155, SR205, SR235, SR265, SR285, SR360, SR365, SR365RC10, SR405, SR415, SR485, etc. |
| XCMG |
XR130, XR150, XR160, XR180, XR220, XR240, XR280, XR360, XR400, XR460, XR550, XR800, XRS1050, etc. |
| ZOOMLION | ZR125C, ZR160C, ZR240C, ZE280C, ZR160L, ZR160A-1, ZR220C, ZR280C-2, ZR300L, ZR360L, ZR380L, ZR400L, ZR450L, ZR500L, ZR650L, ZR140L, ZR550L, ZR220A, etc. |
| SUNWARD | SWDM40, SWDM60, SWDM80, SWDM130, SWDM160, SWDM160H2, SWDM200H, SWDM240, SWDM240H, SWDM240-2, SWDM260, SWDM280, SWDM300, SWDM300H, SWDM300H-2, SWDM360, SWDM360A, SWDM360H3, SWDM420, SWDM420V, SWDM450V, SWDM480, SWDM500, SWDM500V, SWDM550H2, SWDM600, SWDM800, SWDM1000, SWDM1280, etc. |
| LIEBHERR | LB24, LB28, LB36, etc. |
| Atlac Copco | FLEXIROC D55, etc. |
| Sandvik | DX800, etc. |
