Rotary Drilling Rig Track Shoe
What Is Rotary Drilling Rig Track Shoe?
Rotary drilling rig is mostly used to drill big holes in large quarries, open pit mines, petroleum extraction, and other fields.The track shoes are components of the undercarriage whose function is the transmission of the load to the ground, so that the rotary drilling rig can work steadily on the ground.

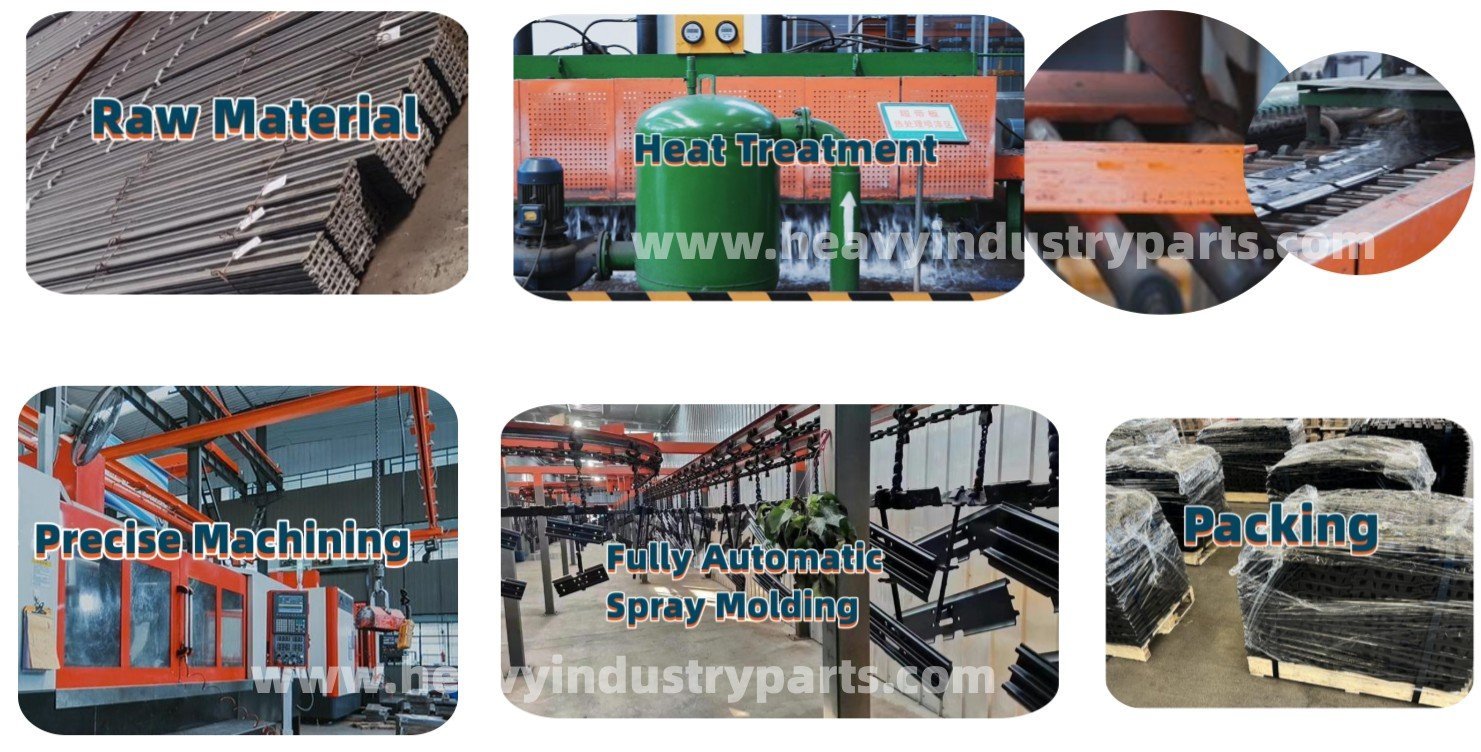

Production Process of Drilling Rig Track Shoe:
Cutting → Punching → Heat Treatment → Straightening → Painting → Inspection → Packing

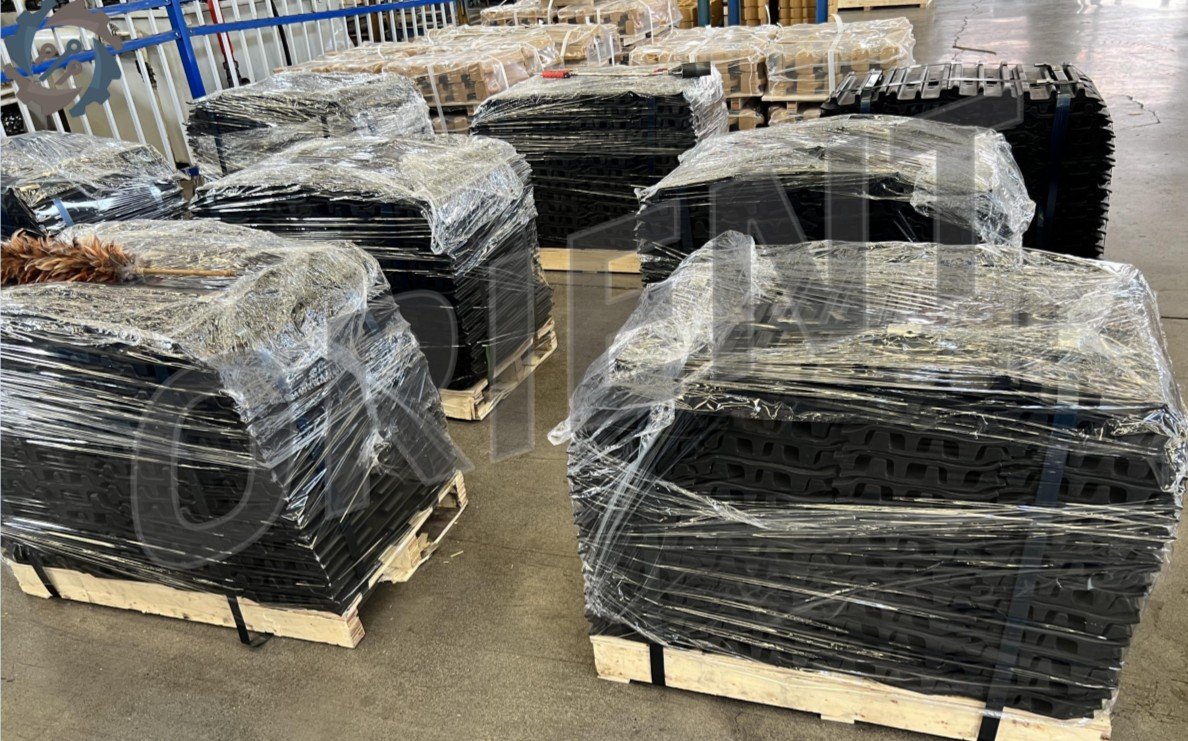

We Have Sufficient Inventory Reserves:
Our Advanced Inspection Instrument：
Microstructure Analysis RoomThe conclusion is drawn scientifically by observing carefully and strictly analyzing and evaluating, which is what we do everyday, and also our room's aim.
Main equipment detailed as follows:
1. Microscope for microstructure, type XUC-05, Zoom: 40x-1600x.
Mainly for microstructure of metal. The evolution of non-metal inclusion microstructure and crystal grain can be done. It also can connect with computer for printing.
2. Continuous zoom stereoscopic Microscope, type JSZ8, Zoom: 4x-64x.
Mainly for fracture or specimen's macro structure analysis. It can continuously zoom out from 4 times to 64 times.
3. Flexible site microstrucure instrument, type XUB-200, Zoom: 100x-400x.
Mainly for site analysis of casting microstructure. It can connect with digital camera for taking photos at site.

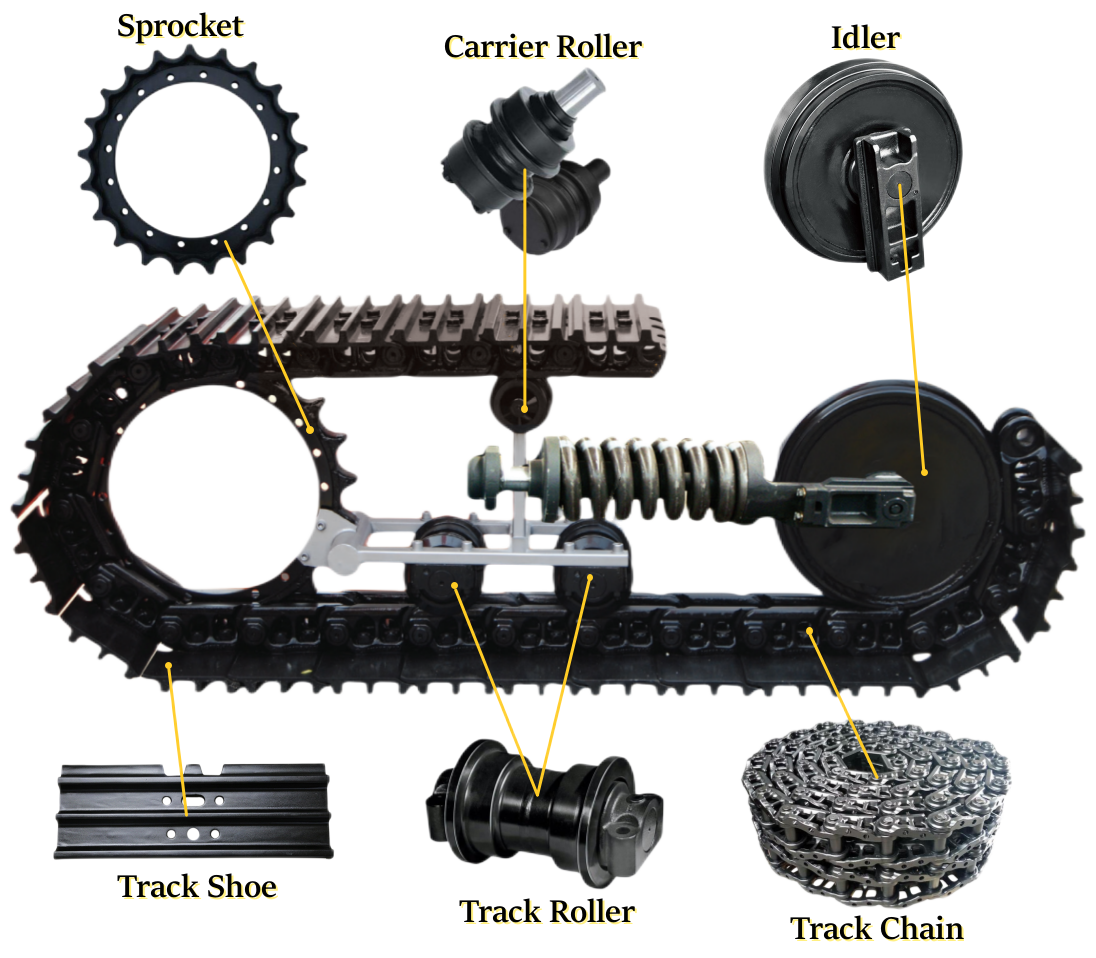

Suitable Undercarriage Parts Model for Rotary Drilling Rig
| BRAND | MODEL |
| Bauer | BG12, BG18, BG20H, BG24, BG25, BG25C, BG25H, BG26, BG28, BG30, BG34, BG36, BG39, BG40, etc. |
| Soilmec | SR30, SR40, SR60, SR65, SR70, SR75, SR80, SR90, SR95, SR100, R208, R312, R618, R620, R622, R622HD, R724, R725, R930, etc. |
| Casagrande | B180, B180HD, B250, B250XP, B300, etc. |
| IMT | AF18, AF180, AF190E, AF190F, AF200, AF215, AF250E, AF250F, AF270, AF280, AF300, AF300E, AF350D, C50, C60, C250, etc. |
| CMV | TH18-65, TH20, TH32, etc. |
| Mait | HR100, HR260, etc. |
| Sany
|
SR150, SR155, SR205, SR235, SR265, SR285, SR360, SR365, SR365RC10, SR405, SR415, SR485, etc. |
| XCMG
|
XR130, XR150, XR160, XR180, XR220, XR240, XR280, XR360, XR400, XR460, XR550, XR800, XRS1050, etc. |
| ZOOMLION | ZR125C, ZR160C, ZR240C, ZE280C, ZR160L, ZR160A-1, ZR220C, ZR280C-2, ZR300L, ZR360L, ZR380L, ZR400L, ZR450L, ZR500L, ZR650L, ZR140L, ZR550L, ZR220A, etc. |
| SUNWARD | SWDM40, SWDM60, SWDM80, SWDM130, SWDM160, SWDM160H2, SWDM200H, SWDM240, SWDM240H, SWDM240-2, SWDM260, SWDM280, SWDM300, SWDM300H, SWDM300H-2, SWDM360, SWDM360A, SWDM360H3, SWDM420, SWDM420V, SWDM450V, SWDM480, SWDM500, SWDM500V, SWDM550H2, SWDM600, SWDM800, SWDM1000, SWDM1280, etc. |
| LIEBHERR | LB24, LB28, LB36, etc. |
| Atlac Copco | FLEXIROC D55, etc. |
| Sandvik | DX800, etc. |
Recommend Products
-
Rotary Drilling Rig Track Shoe
The track shoes are components of the undercarriage whose function is the transmission of the load to the ground, so that the rotary drilling rig can work steadily on the ground.
-
Rotary Drilling Rig Track Link Assembly
The track chain rail is connected with the track shoe through bolts and nuts to form a track assembly, which bears the pressure of the whole piling machine and is an important walking part, so the quality of the chain rail is very important.
-
Rotary Drilling Rig Track Roller
The track roller is one of the four-wheel belts of the rotary drilling rig chassis. Its main function is to support the weight of the rotary drilling rig, so that the track moves along track rollers.
-
Rotary Drilling Rig Carrier Roller
The carrier roller also calls top roller, top roller is the roller on the top of rotary drilling rig undercarriage. Carrier rollers support and guide the machine on the track and provide track tension support.
-
Rotary Drilling Rig Sprocket
Sprockets are metal rollers that consist of a metal inner ring with bolt holes or a compression hub and a gear ring in one unit. The sprocket is connected with the reducer and the track shoe assembly, so that the power of the engine drives the rotary drilling rig to move.
