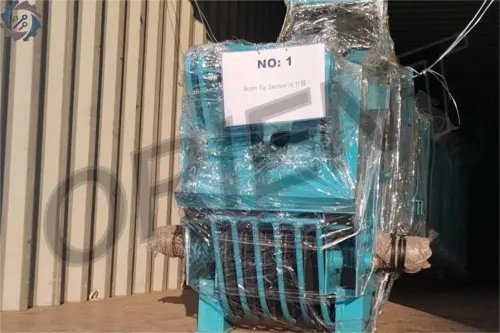

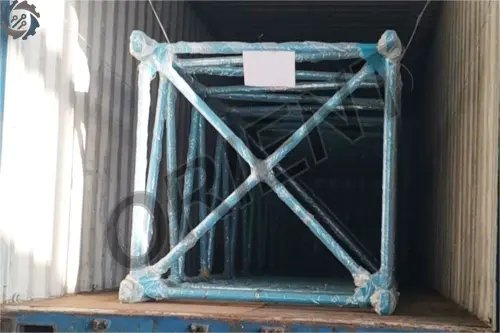

Product Information of Lattice Boom for KOBELCO 7065
Max. Lifting Capacity: 65 metric tons at 4.0 metersMax. Boom Length: 54.86 meters
Basic Boom Length: 12.19 meters
Max. Total Length (Boom+Jib): 60.96 meters

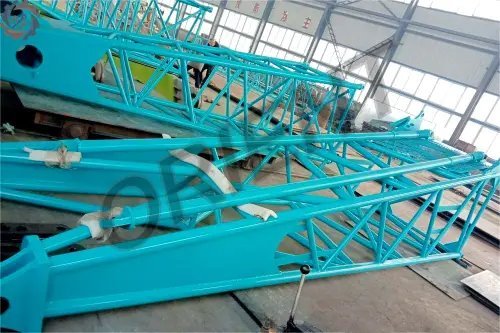

Welded lattice construction using tubular, high tensile steel chords with pin connections between sections Mid-paint suspension (center-hitch) is required for boom lengths longer than 39.62 m.
Technical Details of Lattice Boom for KOBELCO 7065
- Material: Alloy Steel
- Technique: Welding
- Certification: ISO9001
- Color: Bule / Yelllow / Customer Requirement
